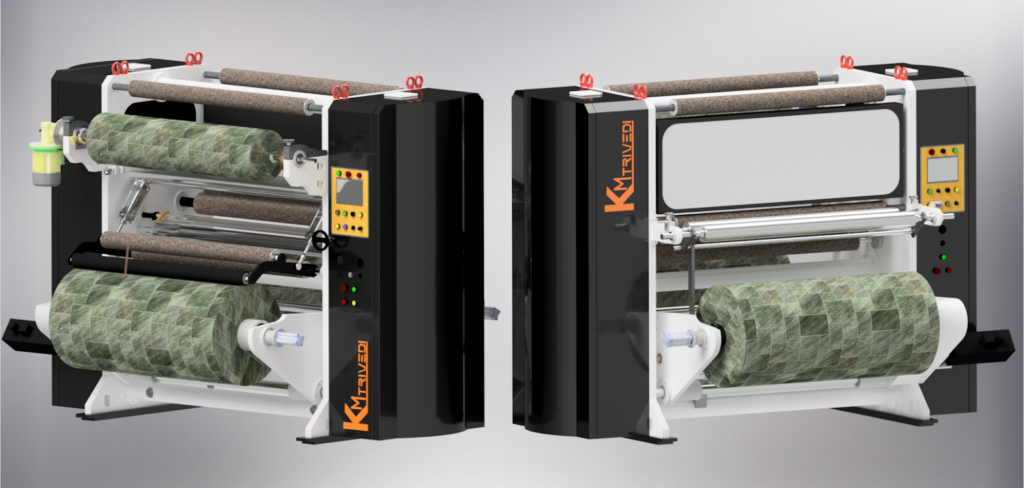

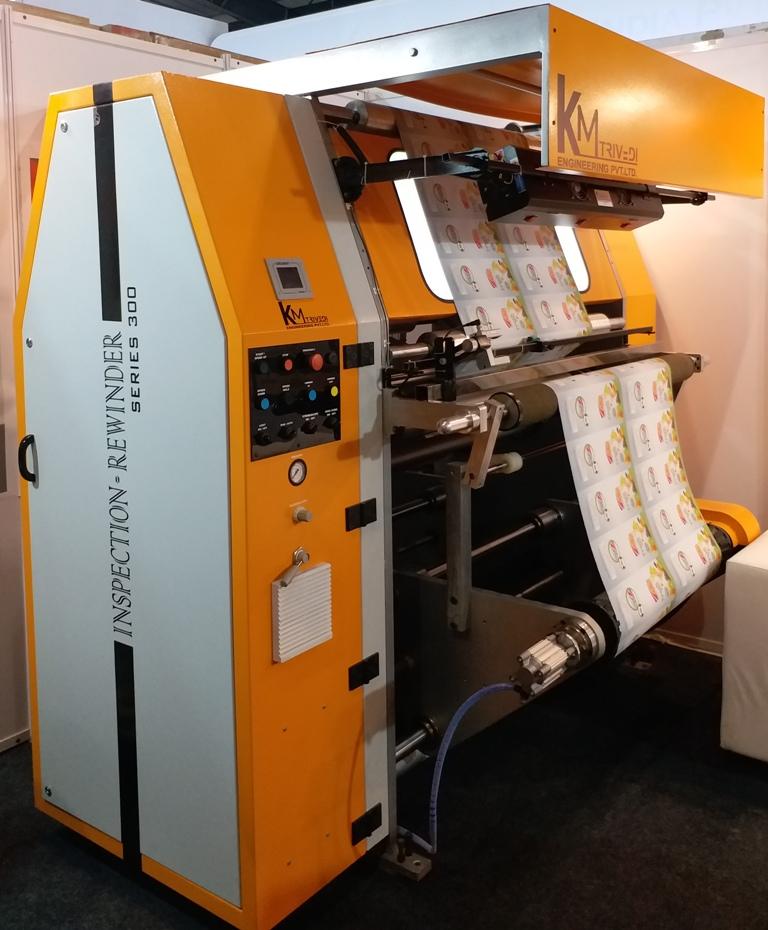

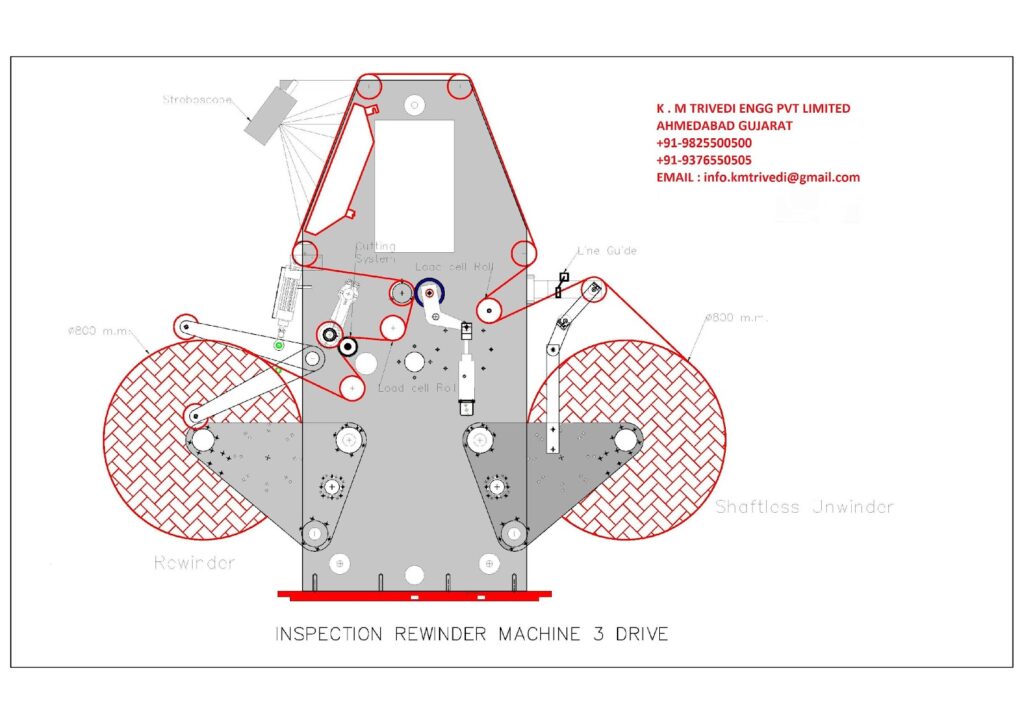

Inspection Machine For All Type Defect In Printing Processes
This is a high-speed inspection machine that recognizes a variety of printing defects. It can also be used for rewinding of the parent roll. Can work in both directions
Technical Specifications
Unwinding Diameter | Max 800 Mm |
Rewind Diameter | Max 800mm |
Max Working Width | 1300 Mm |
Unwind Core Diameter | 76 Mm (3″) |
Rewind Core Diameter | 76 Mm (3″) |
Mechanical Speed | Max 350m/Min (Depending On Working Conditions) |
Applicable Materials | PET, BOPP, PVC, Composite Materials, And Label Reel Materials, Etc. |
Material Thickness Range | 0.012mm-0.15mm |
Traction Motor | 1 Set 3 Kw |
Rewinding Motors | 1 Set 5 Kw |
Unwinding Motor | 1 Set 5 Kw |
Total Energy Consumption | ≈15 Kw |
Pneumatic Pressure | 0.6 Mpa |
Power Supply Voltage | AC 380V±5% Three-Phase Five-Wire、50Hz |
Un. Tension Control | Constant Tension |
Observation Method | Light Box |
Guiding Accuracy | ±0.3mm BST |
Web Guiding Movement Range | ±100mm |
Machine Dimension | L3000*W2300*H2300 |
Weight | 3900kg |
Color | Standard K M TRIVEDI Colors (Reference Picture) |
