KMT Model E Type Turntable Fully Automatic Pallet Wrapping Machine

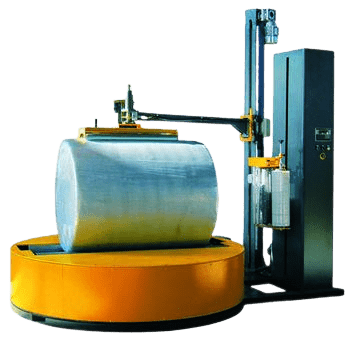

REEL STRETCH WRAPPING MACHINE ( ROLL TYPE ) MOSTLY USED TO PACK PAPER REEL

Technical parameter:

Loading Roll length	700-1800mm 28”-68’’
Loading Roll Diameter	600-1500mm 20”-70”
Packing efficiency	20-30 loads / hour
Turntable speed	6-12rpm
Turntable diameter	2000mm 83”
Turntable Height	Normal 460mm/ ejection 530mm
Turntable weight capacity	2000kg
Film carriage system	Powered pre-stretch film carriage, film tension can go to 300%.
Up-down fram	Double- chain drive the carriage.
Control system	1.With PLC controller 2. with interface operation system so that the wrapping layers count can be adjustable
Electric	380V 50/60HZ 3 Phase (standard)
turntable	1.With two rollers, roller dia: 150mm, the distance between two rollers: 420mm. speed can be adjustable 2.soft start, soft stop, finally stop in the home position
Air Consumption	1000ml/min For top platen and auto ejection system
Material	LLDPE – Stretch Film
Film Thickness	17-35 microns
Film Width	500 mm
Core Diameter	76.2 mm
Maximum Film. Diameter	260 mm
Max. weight of film roll	30 kg

Main Features

1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wrapping machine soft start and soft stop.
9.Suitable for light pallet
10.Remote control system ,fully automatic
11.E type turntable ,easy for pallet jack load the pallet on machine

REEL STRETCH WRAPPING MACHINE FOR PAPER ROLLS RADIAL STRETCH WRAPPING MACHINE

Specification

Roller Diameter	UPTO 2500 MM
MACHINE MAXIMUM WIDTH	UPTO 3500 MM
Roller Speed	6 – 65 r/ min
Capacity Weight	3000 kg.
Wrapping Size	Package dia 100 – 2500 mm, max. package length : 3500 mm
Machine Weight	1800 kg
